One song through the house, or something different in every room? ITAM designs the sources, zones and amplification so the listening feels simple.

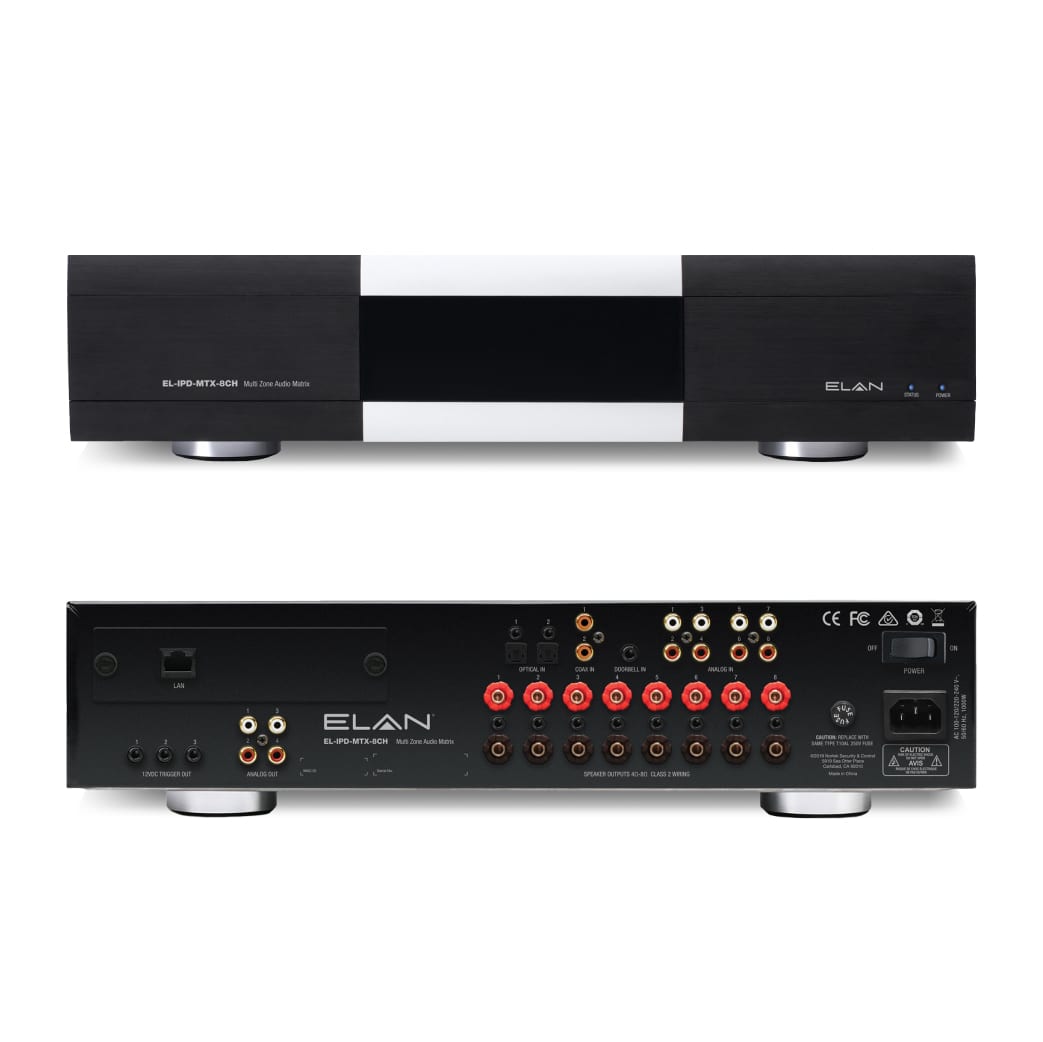

EXPLORE THE COLLECTION ↓EL-IPD-MTX-8CH
The core of a connected music system.
Source selection, amplification and zone control in one unit. Build a standalone multi-room system or make it the heart of a larger ELAN audio design.
PLAN THIS WITH ITAMKEY FEATURES
- 8 amplified channels: 4 stereo / 8 mono zones
- 2 stereo / 4 mono preamp zones
- 4 stereo / 8 mono analog inputs
- 2 optical + 2 coaxial digital inputs
- 80 W per channel at 8 Ω; 100 W at 4 Ω
- 5-band EQ per zone and lip-sync adjustment
- Optional Dante® audio networking

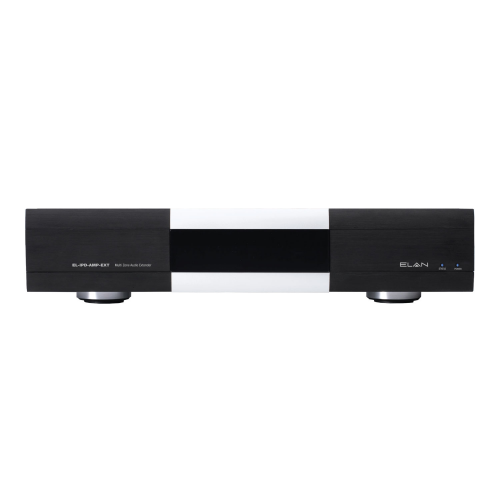

EL-IPD-AMP-EXT
More rooms. The same familiar control.
Add eight amplified channels to an ELAN audio design. Network audio extends the system to the rooms you want to bring into the experience.
PLAN THIS WITH ITAMKEY FEATURES
- 8 additional amplified channels
- 4 stereo / 8 mono amplified zones
- 2 stereo / 4 mono preamp zones
- 80 W per channel at 8 Ω; 100 W at 4 Ω
- 5-band EQ per zone and lip-sync adjustment
- Dante® networking included
- Requires a compatible Dante-enabled amplifier or preamp

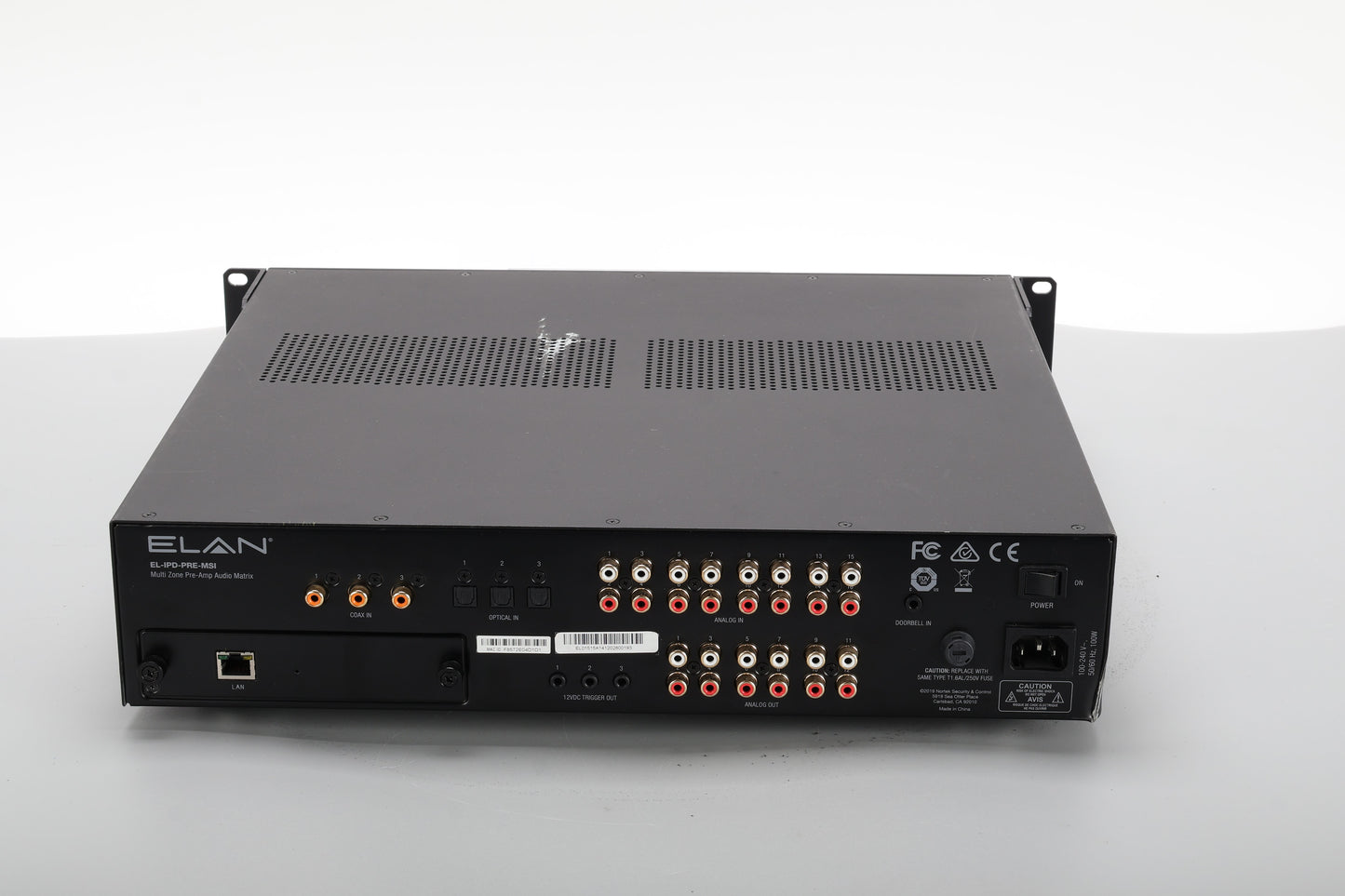

EL-IPD-PRE-MSI
Flexibility for a larger listening plan.
Keep sources and room control together while choosing external amplification to suit the speakers and property.
PLAN THIS WITH ITAMKEY FEATURES
- 6 stereo / 12 mono preamp zones
- 8 stereo / 16 mono analog RCA inputs
- 3 optical + 3 coaxial digital inputs
- Stereo doorbell audio input
- 5-band EQ per zone and lip-sync adjustment
- Optional Dante® audio networking
- External amplifiers provide speaker power

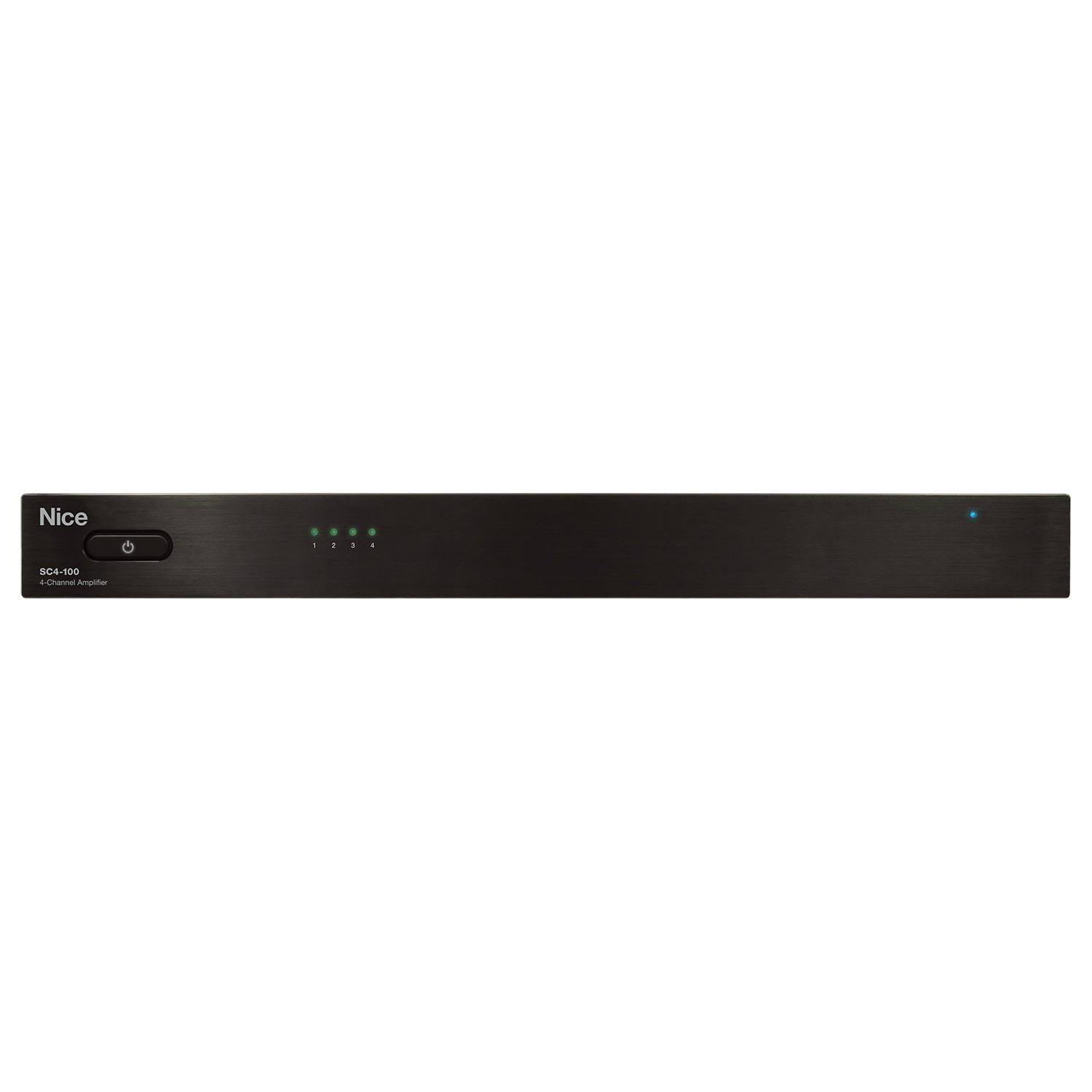

SC4-100
Power shaped for discreet architectural sound.
A flexible amplifier for satellites and passive subwoofers. Analog filtering and independent levels let ITAM balance the system around the room.
PLAN THIS WITH ITAMKEY FEATURES
- 4 independent channels; bridgeable in pairs
- Up to 100 W peak per channel at 8 Ω
- Over 70 W continuous per channel at 8 Ω, all channels driven
- Two selectable analog high-pass filters per channel
- Independent level controls
- Music-sensing, trigger or manual turn-on
- Rack ears and tabletop feet included
START WITH THE WAY YOU LISTEN.
Keep useful sources and speakers. Choose the rooms, the controls and what should play together. ITAM connects the right matrix and amplifiers behind that experience.
ONE ROOM. A WHOLE PROPERTY.
Start with an MTX-8CH, extend compatible systems with AMP-EXT, or use PRE-MSI with external amplifiers. The architecture follows your home.
SPEAK WITH ITAMPRODUCT COMPARISON
Compare the details below. On a small screen, swipe the table sideways.
| SPECIFICATION | EL-IPD-MTX-8CH | EL-IPD-AMP-EXT | EL-IPD-PRE-MSI | SC4-100 |
|---|---|---|---|---|
| Amplified channels | 8 | 8 | — | 4; bridgeable in pairs |
| Amplified zones | 4 stereo / 8 mono | 4 stereo / 8 mono | — | 2, 3 or 4 channels |
| Preamp zones | 2 stereo / 4 mono | 2 stereo / 4 mono | 6 stereo / 12 mono | — |
| Analog inputs | 4 stereo / 8 mono | — | 8 stereo / 16 mono + doorbell | 4 channels |
| Digital inputs | 2 optical + 2 coaxial | Dante network audio | 3 optical + 3 coaxial | — |
| Power at 8 Ω | 80 W / channel | 80 W / channel | Preamp only | Up to 100 W peak; over 70 W continuous / channel |
| Dante® networking | Optional | Included / required | Optional | — |
| Zone shaping | 5-band DSP EQ | 5-band DSP EQ | 5-band DSP EQ | Analog high-pass filters |
SC4-100 peak and continuous power are shown separately. PRE-MSI requires external amplification; AMP-EXT requires a compatible Dante-enabled system.
YOUR MUSIC. BEAUTIFULLY CONNECTED.
Tell us what you enjoy and where you want to hear it. The hardware follows the plan.
